IP Webcams and Cameras

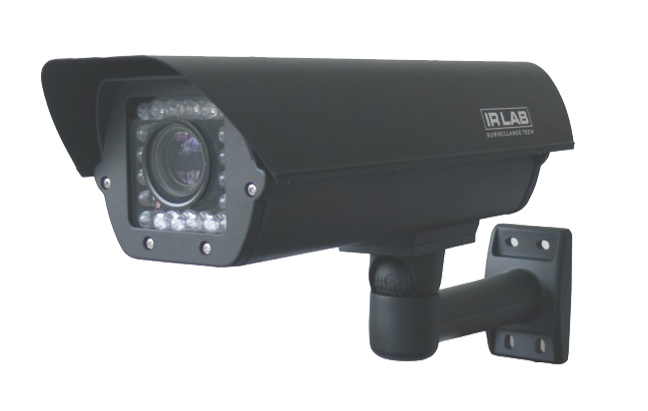

ANPR IP Camera

This IP camera is designed to show a vehicle number plate day or night at a maximum distance of 10 metres from the camera. The camera does not incorporate any ANPR processing software, it is a camera designed to pick out and show the plate of a vehicle so it can then be viewed and recorded on an HD DVR or NVR recording at a high frame rate and used to identify vehicle number plates by sight, or the picture from it can be passed on to  commercially available ANPR control systems for processing etc. The camera has built in features which allow it t pick out the number plate even in darkness with the vehicles lights on and shining toward the camera. The IP ANPR camera also has a conventional analogue video output so this could be connected to an existing ANPR system while the IP HD section of the camera is used separately.

ANPR IP Camera

IP ANPR Camera
IP ANPR Camera Dimensions

IP ANPR Camera £382.00

ANPR IP Camera  Specification


Weatherproof Rating: IP66
Filter: Removable IR Cut Filter
Image Sensor: 1/3'' Progressive Scan CMOS
Pixels: 1920(H)×1080(V)
Horizontal resolution: 2MP
Electronic Shutter: NTSC:1/60-1/100,000S PAL:1/50-100,000S
Minimum Lux: 0Lux
Available IR Distance: 2 ~ 15M
Video Compression: H.264
Transmission Stream Rate: Dual Stream Stream Rate:1-8M, Default Stream Rate 8M
Image setting: OSD
Frame Rate: Main Stream:1-25fps(PAL),1-30fps(NTSC) Sub Stream: 1-25fps(PAL),1-30fps(NTSC)
Ethernet : 1x POE RJ45 1x 12v DC Jack input
Protocol : TCP/IP, UDP, SMTP, PPPoE, DDNS, SNTP, DHCP, FTP, uPnP,RTSP
Support : Onvif 2.0, SDK, Milestone
Web Viewer : IE7.0 or above
Power Supply : DC12V±10%
Current Consumption : 770mA(Max)
Dimension : 231×84×110mm
Weight : 820g
Storage Temperature : -30° - +60°
Operating Temperature : -30° - +45°
Vertical Viewing Angle: 10° - 38°
Horizontal Viewing Angle: 8° - 35°

Our IP ANPR camera can be powered from a 12 volt DC supply or via POE. It has a 3 axis bracket for easy adjustment on uneven surfaces and an extra conventional analogue output too so it can be used both as an IP HD camera and with existing analogue systems at the same time if needed. It has a 9 to 22mm varifocal lens so it can be zoomed in or out to anywhere between these values to help you get a good picture when mounted up to 10 metres from the target number plate area.
